Alchemist AA1 Integrated Amplifier
Orange line

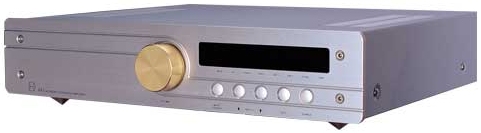

Alchemist AA1 Integrated Amplifier
Orange line

Specifications | Images | Downloads | Design | Servicing | 2nd Hand Market

Orange line

S    P    E    C    I    F    I    C    A    T    I    O    N    S
Orange line
Power Output (Max) 8 ohms:   Typically 80 Watts
Input Sensitivity:   400mV
Frequency Response @ 3v   -3dB @ 60kHz
Residual Noise (Max Vol.):   <0.3mV
Total Harmonic Distortion:   <0.05% THD
Channel Separation:   Typically -65dB
Power Consumption (Peak):   300 Watts
Dimensions (W x H x D):   400mm x 350mm x 95mm
Weight (Packed):   10kg
Orange line
Orange line
Downloads:
Instructions
Orange line
Design:
"The 80Watts per channel Integrated amplifier provides you with a sound quality and feature list that is well beyond its price tag. It has been constructed using the finest materials including the military grade aluminium for the front panel. The total electrical construction follows the hierarchy of ‘dual mono’. This, along with the 1KVA toroidal transformer, ensures that the overall sound quality and power delivery are both effortless and detailed."
Orange line
Servicing:
DO NOT ATTEMPT ANY WORK YOURSELF UNLESS YOU ARE COMFORTABLE WITH ELECTRONICS AND KNOW WHAT YOU ARE DOING
Orange line
2nd Hand Market:
Orange line
Have you something to contribute to this page? Please contact the site administrator.
